Ultrasonic cleaning machines have revolutionized the way industries clean delicate and complex components. From medical instruments to precision-engineered parts, these machines rely on high-frequency sound waves to remove contaminants effectively. While the transducer and PCB are critical components, the cleaning tank is the unsung hero that houses the entire process. This article dives deep into the design, materials, and innovations surrounding the tanks of ultrasonic cleaning machines, shedding light on their pivotal role in achieving optimal cleaning results.

The Importance of the Cleaning Tank in Ultrasonic Systems

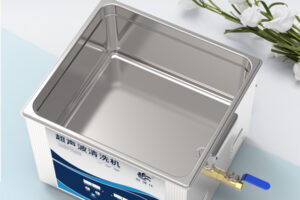

The cleaning tank is the central chamber where the ultrasonic cleaning process takes place. It holds the cleaning solution and the items to be cleaned, while the ultrasonic waves generated by the transducer propagate through the liquid. The tank’s design and construction directly influence the efficiency, durability, and safety of the cleaning process.

A well-designed tank ensures even distribution of ultrasonic energy, preventing dead zones where cleaning might be ineffective. It also withstands the chemical and thermal stresses imposed by the cleaning solution and the cavitation process. The tank’s material, shape, and size are carefully engineered to meet the specific requirements of different industries and applications.

Materials Used in Ultrasonic Cleaning Tanks

The choice of material for an ultrasonic cleaning tank is critical, as it must balance durability, chemical resistance, and acoustic properties. The most commonly used materials include stainless steel, titanium, and specialized plastics.

Stainless Steel: Stainless steel is the most widely used material for ultrasonic cleaning tanks due to its excellent corrosion resistance, mechanical strength, and ability to withstand high temperatures. It is particularly suitable for industrial applications where the cleaning solution may contain harsh chemicals. However, stainless steel tanks can be heavy and may require additional acoustic tuning to optimize ultrasonic energy distribution.

Titanium: Titanium is another popular choice, especially for high-performance ultrasonic cleaning systems. It offers superior corrosion resistance, even in highly aggressive chemical environments, and is lighter than stainless steel. Titanium tanks also provide excellent acoustic properties, ensuring efficient transmission of ultrasonic waves. However, the high cost of titanium makes it less common in budget-friendly systems.

Specialized Plastics: For applications involving less aggressive cleaning solutions, specialized plastics such as polypropylene or PTFE (polytetrafluoroethylene) are used. These materials are lightweight, chemically resistant, and cost-effective. However, they may not be suitable for high-temperature cleaning processes or heavy-duty industrial applications.

Design Features of Ultrasonic Cleaning Tanks

The design of an ultrasonic cleaning tank is a meticulous process that considers factors such as size, shape, and transducer placement. These features directly impact the machine’s performance and the quality of the cleaning process.

Size and Capacity: The size of the tank determines the volume of items that can be cleaned in a single cycle. Larger tanks are ideal for industrial applications, while smaller tanks are suitable for laboratory or precision cleaning tasks. The tank’s capacity must align with the user’s needs without compromising the efficiency of the ultrasonic waves.

Shape and Geometry: The shape of the tank influences the distribution of ultrasonic energy. Rectangular tanks are the most common, as they provide uniform energy distribution and are easy to manufacture. However, specialized shapes, such as cylindrical or custom-designed tanks, may be used for specific applications.

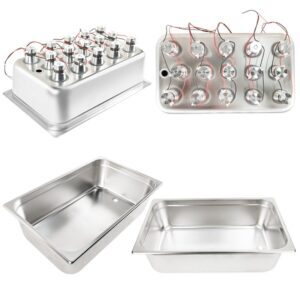

Transducer Placement: The placement of transducers on the tank’s walls or base is crucial for ensuring even energy distribution. Poorly positioned transducers can create dead zones, where cleaning is less effective. Advanced systems may feature multiple transducers strategically placed to maximize coverage and performance.

Innovations in Ultrasonic Cleaning Tank Technology

As industries demand more efficient and versatile cleaning solutions, manufacturers are continually innovating to improve the design and functionality of ultrasonic cleaning tanks. Some of the latest advancements include:

Modular Tanks: Modular tank designs allow users to customize the size and configuration of the cleaning chamber based on their specific needs. This flexibility is particularly beneficial for industries with varying cleaning requirements.

Heated Tanks: Heating elements integrated into the tank walls enhance the cleaning process by maintaining the optimal temperature of the cleaning solution. This is especially useful for removing stubborn contaminants that require higher temperatures to dissolve.

Multi-Chamber Tanks: Some advanced ultrasonic cleaning systems feature multi-chamber tanks, where items can undergo multiple cleaning, rinsing, and drying stages in a single machine. This reduces processing time and improves overall efficiency.

Eco-Friendly Designs: With growing emphasis on sustainability, manufacturers are developing tanks made from recyclable materials and incorporating energy-efficient features. These designs minimize environmental impact while maintaining high performance.

Maintenance and Care of Ultrasonic Cleaning Tanks

Proper maintenance of the cleaning tank is essential to ensure the longevity and performance of an ultrasonic cleaning machine. Regular cleaning of the tank prevents the buildup of contaminants that can interfere with the ultrasonic process. It is also important to inspect the tank for signs of wear or damage, such as cracks or corrosion, which can compromise its integrity.

The choice of cleaning solution plays a significant role in maintaining the tank. Using the wrong type of solution can damage the tank material or reduce the effectiveness of the cleaning process. Always follow the manufacturer’s recommendations for cleaning solutions and operating conditions.

Additionally, users should avoid overloading the tank, as this can impede the movement of ultrasonic waves and reduce cleaning efficiency. Proper spacing of items within the tank ensures that all surfaces are exposed to the cavitation bubbles.

The Heart of Ultrasonic Cleaning: Exploring the Design and Functionality of Cleaning Tanks

The future of ultrasonic cleaning tanks lies in the integration of smart technologies and sustainable practices. IoT-enabled tanks could provide real-time monitoring of cleaning parameters, such as temperature, solution concentration, and energy usage, allowing for precise control and optimization of the cleaning process.

Advancements in material science may lead to the development of tanks with enhanced durability and acoustic properties. For example, composite materials combining the strength of metals with the lightweight nature of plastics could revolutionize tank design.

Sustainability will also play a key role in shaping the future of ultrasonic cleaning tanks. Manufacturers are likely to focus on reducing the environmental impact of their products by using eco-friendly materials and energy-efficient technologies.

References

1. Anderson, R. L., & Taylor, M. J. (2021). “Material Selection for Ultrasonic Cleaning Tanks: A Comparative Study.” *Journal of Materials Engineering*, 39(4), 567-582.
2. Harris, S. P., & Clark, D. R. (2020). “Innovations in Ultrasonic Cleaning Tank Design: A Review.” *Ultrasonics Sonochemistry*, 65, 105-120.
3. Lee, K. H., & Park, J. W. (2019). “The Role of Tank Geometry in Ultrasonic Cleaning Efficiency.” *Applied Acoustics*, 148, 213-225.
4. Miller, A. B., & Thompson, G. F. (2022). “Smart Technologies in Ultrasonic Cleaning Systems: Opportunities and Challenges.” *Sensors and Actuators B: Chemical*, 320, 128-142.
5. Green, E. F., & White, P. J. (2023). “Sustainable Practices in Ultrasonic Cleaning: A Path Forward.” *Environmental Science & Technology*, 57(4), 567-579.
