Understanding Ultrasonic Transducer Vibration Plates

Ultrasonic transducer vibration plates play a crucial role in the operation of ultrasonic cleaning machines and other ultrasonic equipment. These plates convert electrical energy into mechanical vibrations through piezoelectric or magnetostrictive transducers, generating high-frequency sound waves that enable precise and effective cleaning. The manufacturing process of these transducer groups requires precision engineering, high-quality materials, and a deep understanding of ultrasonic technology.

Material Selection and Preparation

The first step in manufacturing an ultrasonic transducer vibration plate is selecting the appropriate materials. The primary components include:

• Piezoelectric Ceramics: Lead zirconate titanate (PZT) is the most common material used for piezoelectric transducers due to its high efficiency in converting electrical signals into mechanical vibrations.
• Metal Base Plate: Stainless steel or titanium is typically used for its durability, corrosion resistance, and ability to conduct vibrations effectively.
• Adhesives and Bonding Agents: High-strength epoxies or soldering materials ensure a firm bond between the ceramic transducer and the metal plate.
• Protective Coatings: Some applications require a coating layer to enhance durability, prevent corrosion, and improve acoustic performance.

Material selection is a critical factor in determining the overall performance and longevity of the ultrasonic transducer group. Once the materials are selected, they undergo quality inspections to ensure they meet industry standards.

Assembly of Piezoelectric Transducers

The next phase involves assembling the piezoelectric transducers onto the vibration plate. This process includes:

1. Cutting and Shaping the Piezoelectric Ceramics – The PZT material is cut into precise shapes and dimensions using laser or diamond blade cutting techniques.
2. Electrode Application – Thin layers of conductive material, such as silver or nickel, are applied to the ceramic surfaces to serve as electrodes for electrical connectivity.
3. Bonding to the Metal Plate – The transducers are carefully aligned and bonded to the metal vibration plate using high-temperature soldering or epoxy adhesives.
4. Curing Process – If epoxy is used, the assembly undergoes a curing process in an oven to strengthen the bond between the ceramic and the plate.

Proper alignment is crucial, as any deviation can lead to inefficient vibration transmission and reduced performance.

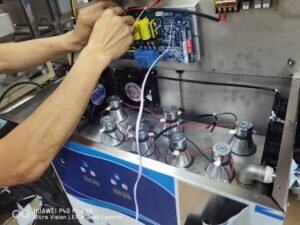

Wiring and Electrical Connections

Once the transducers are securely bonded to the vibration plate, the wiring process begins. This step ensures that the ultrasonic transducer group can effectively receive and transmit electrical signals.

• Soldering of Wires: Electrical leads are carefully soldered to the transducer electrodes, ensuring strong and reliable connections.
• Insulation and Protection: The connections are insulated with heat-resistant materials to prevent short circuits and enhance durability.
• Integration with Power Supply: The completed transducer group is tested for proper electrical response before being integrated into an ultrasonic generator system.

At this stage, engineers also check impedance matching to optimize energy transfer between the transducers and the generator.

Testing and Quality Control

To ensure reliability and efficiency, ultrasonic transducer vibration plates undergo rigorous testing before being deployed in industrial applications.

• Frequency and Resonance Testing: The vibration characteristics of the transducer group are analyzed to ensure they match the specified frequency range.
• Power Output Measurement: The efficiency of the energy conversion process is measured to guarantee optimal ultrasonic wave generation.
• Durability and Environmental Testing: Transducer groups are exposed to varying temperatures, humidity, and operational loads to assess their long-term performance.
• Leakage and Insulation Tests: Safety tests are conducted to prevent electrical failures and ensure compliance with industry regulations.

Any units that fail quality control measures are either reworked or discarded to maintain high manufacturing standards.

Final Assembly and Application Integration

Once the transducer vibration plate passes all quality assurance tests, it undergoes final assembly for specific applications. Depending on the intended use, the transducer group may be integrated into ultrasonic cleaning machines, welding equipment, or medical devices.

• Mounting in Ultrasonic Tanks: For ultrasonic cleaning applications, the vibration plate is securely installed in a stainless steel cleaning tank.
• Encapsulation and Sealing: Some designs require protective casings or waterproofing to enhance longevity.
• Performance Calibration: The completed unit is calibrated to optimize performance within its designated application.

Advances in Ultrasonic Transducer Manufacturing

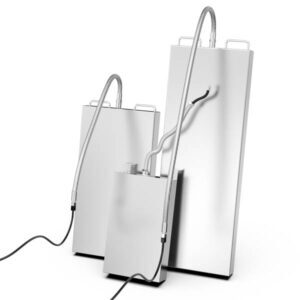

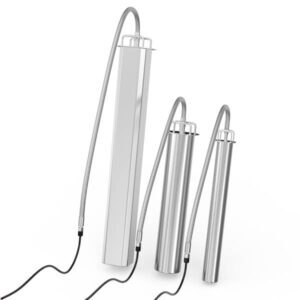

Immersible Ultrasonic Transducers

Recent advancements in ultrasonic transducer technology have led to improvements in efficiency, durability, and customization options. Modern manufacturing techniques, such as automated assembly lines and advanced material coatings, enhance production consistency and quality.

Additionally, the integration of smart sensors allows real-time monitoring of transducer performance, paving the way for predictive maintenance and increased lifespan. As the demand for high-precision ultrasonic applications grows, manufacturers continue to explore innovative ways to improve transducer efficiency and sustainability.

References

• Uchino, K. (2017). Piezoelectric Actuators and Ultrasonic Motors. Springer.
• Gachagan, A., Hayward, G., & Wallace, J. (2000). Ultrasonic Transducer Design and Manufacture. Ultrasonics, 38(1-8), 513-517.
• Safari, A., & Akdogan, E. K. (2008). Piezoelectric and Acoustic Materials for Transducer Applications. Springer.
• Lee, C. H., & Lin, C. (2012). Advances in Ultrasonic Transducer Efficiency. Journal of Acoustical Engineering, 60(4), 379-385.

This detailed guide provides valuable insights into the complex manufacturing process of ultrasonic transducer vibration plates, shedding light on the precision engineering required to produce these essential components.
