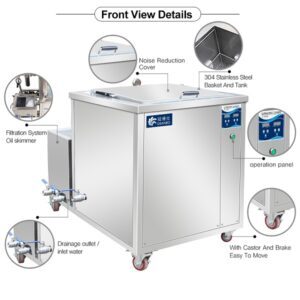

Industrial Single Tank Ultrasonic Machine

Ultrasonic cleaning equipment is an essential tool used in various industries for the efficient removal of contaminants from objects. From jewelry to industrial machinery parts, ultrasonic cleaners have proven to be invaluable in achieving high standards of cleanliness, especially in delicate and intricate items. These machines operate by generating high-frequency sound waves that create microscopic bubbles in a liquid, which then collapse, producing shockwaves that dislodge dirt, grime, oils, and other contaminants. As the demand for precision cleaning grows, understanding the basic design types of ultrasonic cleaning equipment can help businesses and individuals select the right system for their needs.

Understanding Ultrasonic Cleaning Technology

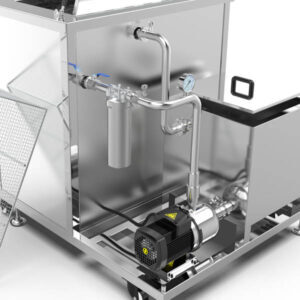

Ultrasonic Cleaner With Filtration,Recycle System

Before delving into the different types of ultrasonic cleaning equipment, it is important to understand how ultrasonic cleaning works. Ultrasonic cleaners generate high-frequency sound waves, typically in the range of 20 to 400 kHz, through transducers submerged in a cleaning solution. These sound waves create cavitation bubbles in the solution, which expand and implode rapidly. This process generates intense cleaning action that can penetrate the smallest crevices of complex objects, removing contaminants from surfaces without causing damage.

The effectiveness of ultrasonic cleaning depends on several factors, including the frequency and power of the ultrasonic waves, the type of cleaning solution used, and the design of the equipment itself. The design of ultrasonic cleaning equipment is often tailored to specific applications, such as cleaning medical devices, electronics, or industrial parts.

Types of Ultrasonic Cleaning Equipment

Ultrasonic cleaning equipment comes in various designs to suit different applications and industries. The primary differences in design usually relate to the size of the unit, the type of transducer used, and the specific features included to enhance cleaning efficiency. Below are the most common types of ultrasonic cleaning equipment:

1. Benchtop Ultrasonic Cleaners

Benchtop ultrasonic cleaners are compact units designed for smaller cleaning tasks. They are ideal for laboratories, dental offices, jewelry stores, and small-scale manufacturing operations. These units typically have a tank capacity of up to 45 liters, making them perfect for cleaning individual items or small batches.

Benchtop cleaners often feature digital or analog controls to adjust the frequency and cleaning time, and some come with heaters to enhance the cleaning process. Their design allows easy integration into a workspace without taking up too much space. These units are generally less expensive and are ideal for applications that require high precision cleaning but on a smaller scale.

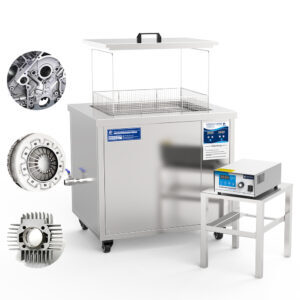

Professional industrial Ultrasonic Cleaner

Key Features of Benchtop Ultrasonic Cleaners:

• Compact design for limited space
• Adjustable frequency and cleaning time
• Often come with built-in heaters
• Ideal for smaller cleaning loads (e.g., jewelry, dental instruments)

2. Industrial Ultrasonic Cleaners

Industrial ultrasonic cleaners are larger systems designed for heavy-duty cleaning tasks. These units are capable of cleaning large batches of parts or bulky items, such as automotive components, medical devices, or industrial machinery. Industrial ultrasonic cleaners typically have larger tanks, ranging from 10 to 200 liters, and can handle items that require more intensive cleaning.

The design of industrial ultrasonic cleaners often includes multiple transducers to ensure uniform cleaning across large surfaces. Some models feature automatic basket handling systems, allowing for high-volume cleaning without manual intervention. Additionally, industrial cleaners are often equipped with advanced features such as programmable controls, multi-stage cleaning cycles, and custom-built tanks to handle specialized cleaning requirements.

Three Tanks Drum Type Ultrasonic Cleaner Machine

Key Features of Industrial Ultrasonic Cleaners:

• Large tank capacity for high-volume cleaning
• Multiple transducers for consistent cleaning
• Advanced features like multi-stage cleaning cycles and programmable controls
• Customizable designs for specialized cleaning needs

3. Cleaning Systems with Automated Features

Some ultrasonic cleaning equipment comes with automated features to improve operational efficiency and streamline cleaning processes. These systems are typically used in high-volume or industrial settings where speed and consistency are critical. Automated systems may include conveyor belts, robotic arms, or other mechanisms to load and unload items into the ultrasonic cleaning tanks without manual intervention.

Automated ultrasonic cleaning systems are often found in industries such as automotive manufacturing, semiconductor production, and large-scale food processing. These units can operate continuously, improving production speeds and reducing labor costs. Additionally, some automated systems are designed to handle parts that require specialized cleaning, such as those with multiple compartments or surfaces that need thorough cleaning from all angles.

Key Features of Automated Ultrasonic Cleaners:

• Fully automated systems with minimal human intervention
• Conveyor belts or robotic arms for loading and unloading
• Ideal for high-volume or continuous operations
• Can be customized for specific industry needs

4. Multi-Tank Ultrasonic Cleaners

Multi-tank ultrasonic cleaners are designed to facilitate multi-stage cleaning processes. These systems typically feature multiple tanks for different stages of the cleaning process, such as pre-washing, ultrasonic cleaning, rinsing, and drying. By incorporating multiple tanks, these systems allow users to clean items more thoroughly and with greater precision.

These systems are often used for applications that require complex cleaning, such as in the medical device industry, where sterilization is a key concern. The multi-tank design ensures that contaminants are removed in stages, and each stage can be optimized for the specific type of cleaning required. The addition of a drying stage in these systems can be beneficial for cleaning components that must be free of moisture.

High Pressure Spray Four Tanks Ultrasonic Cleaner Equipment

Key Features of Multi-Tank Ultrasonic Cleaners:

• Multiple tanks for multi-stage cleaning
• Ideal for complex cleaning tasks (e.g., medical devices)
• Stages can be customized for different cleaning requirements
• Includes rinsing and drying stages for added efficiency

5. Custom-Built Ultrasonic Cleaners

For specialized applications, custom-built ultrasonic cleaning systems are often required. These systems are designed based on the unique needs of the customer or industry. Custom designs can include larger tanks, unique configurations for specific cleaning requirements, and custom transducer placements to ensure the most effective cleaning.

Custom-built ultrasonic cleaners are common in industries like aerospace, precision engineering, and biotechnology, where the cleaning process must meet strict specifications. For example, aerospace manufacturers may require ultrasonic cleaning systems with tanks designed to clean turbine blades, which have very specific cleaning needs. In such cases, custom-built ultrasonic cleaning equipment ensures that the system meets the exact specifications of the parts being cleaned.

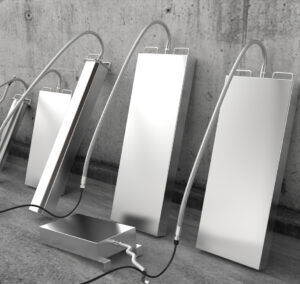

granbo ultrasonic cleaner transducer all

Key Features of Custom-Built Ultrasonic Cleaners:

• Tailored designs to meet specific industry needs
• Custom tank sizes and transducer configurations
• Ideal for specialized applications (e.g., aerospace, biotechnology)
• Can include unique features based on customer requirements

Factors to Consider When Choosing Ultrasonic Cleaning Equipment

Selecting the right ultrasonic cleaning equipment is essential for ensuring the desired results. Several factors should be taken into account when making this decision:

1. Tank Size and Capacity

The size of the cleaning tank is one of the most important considerations. Smaller tanks are suitable for cleaning individual items or small batches, while larger tanks are necessary for industrial-scale cleaning operations. The tank size should match the volume of items to be cleaned to ensure efficiency and effectiveness.

2. Frequency and Power Settings

The frequency and power settings of the ultrasonic cleaner affect how well it removes contaminants. Lower frequencies (20-40 kHz) are generally used for cleaning larger, tougher parts, while higher frequencies (above 100 kHz) are more suitable for delicate items, such as jewelry or electronic components. Adjustable frequency settings are often a desirable feature, allowing users to tailor the cleaning process to the specific item being cleaned.

3. Material of Construction

The material of the ultrasonic cleaner’s tank and components is crucial, as it needs to be durable enough to withstand continuous use and exposure to cleaning solutions. Stainless steel is a common material used in ultrasonic cleaning equipment due to its resistance to corrosion and ability to maintain its strength under harsh cleaning conditions.

4. Heating Capabilities

Many ultrasonic cleaning systems come with built-in heaters to enhance the cleaning process. Heating the cleaning solution helps accelerate the cavitation process and improves the efficiency of contaminant removal. For items that require precision cleaning, such as medical devices, maintaining the correct temperature is essential.

5. Control Features

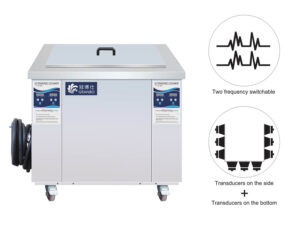

Double Frequency & Double Controller

The control features of an ultrasonic cleaner allow users to adjust cleaning time, frequency, and temperature. Digital controls provide greater precision, while some units offer preset programs tailored to specific cleaning tasks. The ability to control these parameters ensures that the cleaning process is optimized for different types of contaminants and materials.

Final Thoughts

Ultrasonic cleaning equipment plays a vital role in many industries, providing an efficient and non-abrasive method of cleaning that can reach even the most difficult-to-clean surfaces. The design of ultrasonic cleaning systems varies depending on the application, ranging from compact benchtop units to large-scale industrial machines with automated features. By understanding the different types of ultrasonic cleaners and the factors to consider when choosing the right equipment, businesses can make more informed decisions to ensure that their cleaning processes are effective, safe, and compliant with industry standards.
